Ekip TT module

70 | © 2017 ABB | 1SDH000999R0002 — ECN000058721 — Rev. B

Ekip Programming allows you to:

• Supply the trip unit in the absence of auxiliary voltage

• Access the information and pages for programming the trip unit with Ekip Connect software (see page 68).

IMPORTANT: Ekip Programming can be connected the trip units also when they are

in service.

NOTE: Ekip Programming only powers the trip unit. Therefore, to set and display the information

for any electronic accessories connected to the terminal box, those accessories must be

powered with an Ekip Supply module (see page 62).

It draws its power from the PC, and connects one side directly to the test connector at the front of the trip

unit, and on the other to the USB ports of the PC with the cable supplied.

It turns on after connecting to the PC, and is equipped with two LEDs, a green one indicating that the module

is on, and a yellow one indicating active communication.

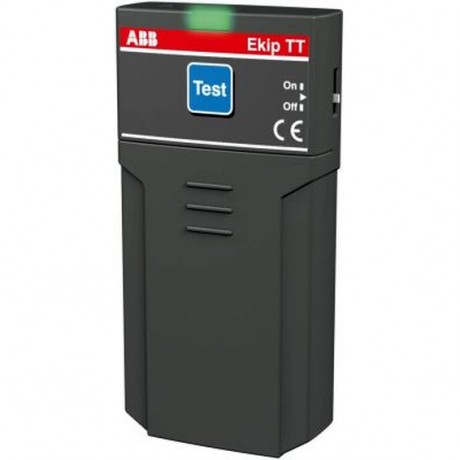

Ekip TT is supplied as standard with Emax 2 circuit-breakers if they are equipped with an Ekip Touch, Ekip

Hi-Touch, Ekip G Touch or Ekip G Hi-Touch protection trip unit, and with all loose trip units (ordered as spare

parts), and allows you to:

• Check that the opening mechanism of the circuit-breaker functions properly by commanding an opening

by means of the test procedure (see page 45)

• Power the trip unit so that you can see which protection tripped either on the display or through the lighting

of the corresponding LEDs in the absence of auxiliary voltage and where the circuit breaker is open due

to a protection tripping

• Power the Ekip Touch, Hi-Touch, G Touch, and G Hi-Touch trip units in order to set the protections in the

absence of auxiliary voltage

IMPORTANT: Ekip TT can also be connected to the trip units when in service. In the

case of connection to trip units in service, it is not possible to perform a trip test.

NOTE: Ekip TT only powers the trip unit. Therefore, in order to set and to display information

on any electronic accessories connected to the terminal box, these must be powered with

an Ekip Supply module (see page 62).

It draws its power from three AA alkaline batteries 1.5V, connects to the test connector at the front of the trip

unit with the supplied cable, and is turned on by setting the side switch to ON.

It includes a LED that is green when the device is energized and the batteries are charged, and red when the

batteries are drained and need to be replaced.

Further information on Ekip TT is available on the web site http://www.abb.com/abblibrary/DownloadCenter/,

in particular in the kit sheet 1SDH001000R0519, and in the Ekip Connect software manual 1SDH000891R0002.

ABB | SACE Emax 2

Electronic accessories | 6 — Other accessories
