Megmeet artsen 2 cm500 инструкция по эксплуатации

Профессиональный полуавтомат для производства!

Источники серии Artsen II успешно используются для сварки конструкционных сталей в тяжёлом машиностроении, производстве металлоконструкций, изготовлении емкостей и резервуаров, транспортном машиностроении.

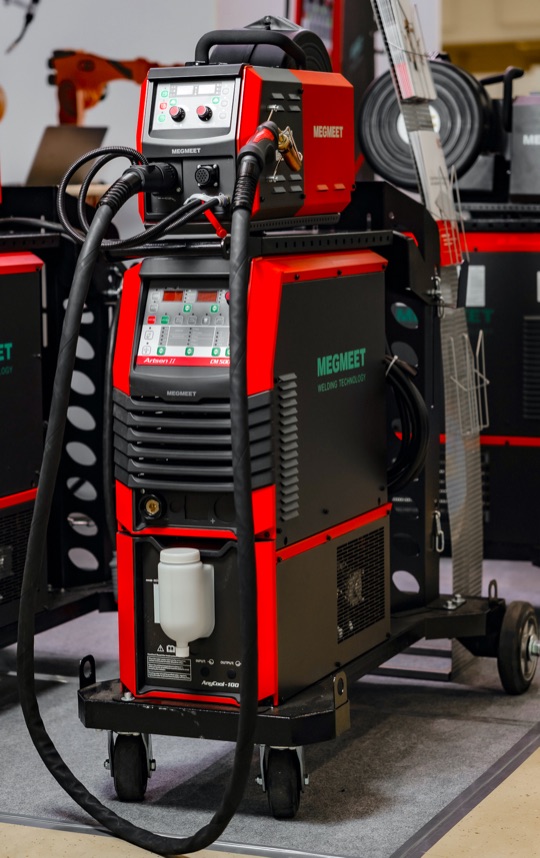

• Источник тока
• Закрытый блок подачи проволоки
• Кабель-пакет 10 м
• Кабель массы 4 м с клеммой
• Блок охлаждения AnyCool-100 (опция)
• Большая сварочная тележка (опция)
• Промежуточный механизм подачи проволоки 10-20 м (опция)
• Интерфейс для подключения горелки Push-pull (опция)

• Коммуникационный блок для подключения к роботам (опция)
• Блок подачи проволоки для роботизированной сварки (опция)
• Интерфейс для доступа к SMARC (опция)

Подключение и управление горелкой «Push-pull«:

• Исключительная стабильность
  благодаря тянущему приводу
  подачи проволоки
• Возможность работы с горелками типа «Push-pull»
  основных производителей горелок с простым
  подключением и выбором функции одной
  кнопкой во внутреннем меню.
• Сварочный ток (или скорость подачи проволоки)
  и напряжение (или коррекция длины дуги)
  регулируются с помощью горелки «Push-pull».
• Широко используется при сварке больших
  деталей из алюминиевых сплавов.

Подключение и управление горелкой «Up/Down»:

• Управление «Up/Down» по сварочному току
• Управление «Up/Down» по напряжению

• Лёгкий и компактный, прочный
  и долговечный, с металлической рамой, обтекаемый дизайн
  для максимальной мобильности.

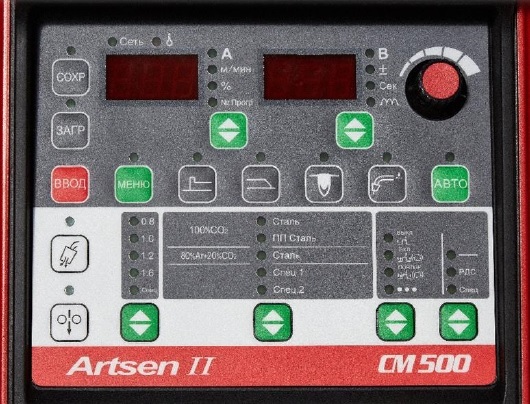

• Цифровой дисплей для удобного контроля и настройки параметров
  сварки.
• Достижение рабочего диапазона до 58 м для сплошной стальной
  проволоки, в том числе 30 м для блока подачи проволоки сварочного
  полуавтомата, 25 м для промежуточного устройства подачи проволоки
  и 3 м для горелки.
• Низкая стоимость сварочных материалов, позволяющая работать
  с обычной сварочной горелкой.
• Широко применяется в условиях больших расстояний и узких
  пространств, например, при сварке больших резервуаров,
  в судостроение и производстве крупногабаритных стальных

• Доступны кнопки для быстрой подачи
  проволоки, извлечения проволоки и проверки
  газа для полуавтоматов серий Artsen Plus/Pro.
• Переключение между механизмами энкодерной
  обратной связи и «противодействующей
  обратной связи электродвигателя».
• Поддержка горелки типа «push-pull».
• Легкий блок массой 6,8 кг.
• Компактные размеры 303 × 170 × 205 мм.
• Евро-разъем в стандартной комплектации, японский разъем опционально.

Артикул: Artsen (2) CM500

Артикул: Artsen (2) CM500

В наличии:
Много
