Телефон win ii dmp330 инструкция

На задней стенке расположен динамик звонка и громкой связи, объектив камеры и крышка батарейного отсека.

Под крышкой располагается аккумулятор и гнездо пол SIM карту. Здесь же находится наклейка с указанием, модели телефона, IMAI, и MAC адреса.

На нижней кромке находится гнездо Mini-USB, которое служит для зарядки, синхронизации и подключения проводной гарнитуры. Справа расположены клавиши регулировки громкости и гнездо для карты памяти MicroSD. Слева — клавиша спуска фотоаппарата.

Настройка и использование

Для начала использования вставляем аккумулятор и подключаем телефон к зарядке на пару часов. После полного заряда включаем аппарат и производим первичную настройку. Очень удобно, что интересующие нас основные функции, таки как настройка Wi-FI и SIP удобно собраны в одном подменю «VoIP», которое вызывается нажатием клавиши джойстика вверх.

Теперь нам понадобится всего несколько шагов и пара минут, чтобы подготовить телефон для первого звонка:

1. Заходим в меню Wireless LAN , далее Searching for networks. На экране отображается список доступных поблизости Wi-Fi сетей.

2. Выбираем необходимую сеть и вводим пароль в открывшемся запросе. Выбор регистра букв и переключение на цифровую клавиатуру производится клавишей #. После ввода пароля, при удачном соединении, справа на экране отобразится вертикальный индикатор уровня сигнала сети.

3. Возвращаемся в меню VoIP, нажав клавишу «Вверх», и выбираем подменю SIP Setting, далее Profilw Setting. Перед нами список из 10-ти доступных SIP профилей, которые могу использоваться на телефоне. Заходим в Prifile 1, убедившись, что напротив него стоит галочка, указывающая активный профиль. Далее — Edit.

4. Главные настройки SIP аккаунта находятся в меню Accaunt Setting. Здесь мы указываем: SIP Server, SIP Port (по умолчанию 5060), Displey Name (отображение на экране), Username, Auth. Name и Password. После ввода всех настроек указываем Done и на вопрос о сохранении выбираем Yes.

5. Возвращаемся в меню VoIP через команду Back и выбираем подменю Login. При удачном соединении вы увидите на секунду надпись Login Susses, а в верхней строке экрана появится значок VOIP.

Телефон готов к работе!

Для совершения звонка нужно набрать номер на клавиатуре, выбрать его в телефонной книге или истории звонков. После набора или выбора номера, начать вызов двумя способами: безусловно — нажав клавишу начала звонка, или опционально — выбрав верхней левой клавишей меню Option. При безусловном наборе вызов пойдет по выбранной настройках линией по умолчанию. При выборе опций, мы получим меню с выбором: Звонок через VoIP, Звонок через GSM, изменение набранного номера, сохранение набранного номера.

Во время звонка нам доступны две программные клавиши. Верхняя правая клавиша позволяет переключить вызов на громкую связи и обратно. Верхняя левая клавиша вызывает меню позволяющее: завершить вызов, переадресовать вызов на другой номер (Transfer), набрать новый номер, выбрать номер в телефонной книге, отключить микрофон (Mute) или вызывать панель донабора (DTMF).

При наборе второго номера, первый звонок уходит в режим ожидания (Hold). Опции вызова при одновременном втором звонке отлисаются. Теперь мы можем: отправить второй вызов на ожидание, переключить вызовы, связать вызовы в трехстороннюю конференцию, закончить активный вызов, закончить оба вызова, переадресовать активный вызов.

Пользоваться телефоном для звонков очень удобно, он хорошо лежит в руке и имеет легкую в управлении клавиатуру. При звонке звук громкий и чистый. Вы прекрасно слышите собеседника, а он вас в свою очередь. Управление основными функциями при звонке, такими как: переадресация вызова, набор дополнительного номера, создание конференции, Mute и DTMF, очень удобно и не требуют длительного привыкания. Каждая команда имеет свой номер, запомнив который, вы можете очень быстро набрать команду на клавиатуре.

Теперь пробежимся по основному меню телефона, чтобы познакомиться со всеми его функциями и настройками.

Основное меню вызывается нажатием верхней левой клавиши из основного окна. Меню оформлено в виде значков, отвечающих за отдельные пункты:

Settings:

  — Пользовательские профили — много готовых профилей для обычного использования, улицы, встречи, использования с проводной или Bluetooth гарнитурой;
  — Настройки дисплея — обои, скринсейвер, управление временем выключения дисплея;
  — Настройки телефона — время и дата, язык интерфейса (английский или китайский — русского нет), предпочтения для ввода символов, кодировка по умолчанию, текст приветствия, настройка быстрого набора, настройка функций клавиш джойстика, настройка обновления системы;
  — Настройки звонков — Coller ID, ожидание вызова, отклонение вызова, переключение линий, сигналы о длительности звонка;
  — Настройки сети — предпочтения и разрешения между GSM и безпроводной сетями;
  — Настройки безопасности — настройки блокировки сим карты и телефона, автоблокировки клавиатуры;
  — Сброс к заводским настройкам;
  — Звуковые эффекты — настройка эквалайзера, мелодии для удержания вызова;
  — Быстрые клавиши.

Как мы видим, DMP330 — это не просто телефон а целый программно-аппаратный комплекс, включающий в себя помимо основных голосовых и сетевых функций, массу дополнительных приложений и настроек. Этот телефон может выполнять функции продвинутого органайзера, фотокамеры, мультимедийного центра и многие другие. Телефон очень гибко настраивается и позволяет очень точно подобрать необходимые индивидуальные настройки.

К минусам телефона, я бы отнес отсутствие веб-интерфейса, стакана для зарядки и невозможность закрытия паролем доступа к важным настройкам. Все эти факторы могут негативно сказаться при выборе данного телефона корпоративными пользователями. Также огорчила неспособность телефона использовать 3G для VoIP звонков. С учетом заявленных возможностей GSM, это не оказалось бы лишним.

В целом Tecom DMP330 вполне не плохо показал себя. Даже если отбросить все дополнительные возможности, такие как поддержку GSM, камеру, органайзер, аудио и видео плееры и тп, мы получим простой и удобный Wi-Fi SIP телефон с прекрасными звуковыми характеристиками и большим временем работы. Стоит отметить готовности телефона для работы по Bluetooth протоколу для использования с гарнитурой или беспроводным спикерфоном.

Обзор подготовил Евгений Горбарский

1

TABLE OF CONTENT

GENERAL INFORMATION……………………………………………. 7

Battery care……………………………………………………………….. 7

Access codes …………………………………………………………….. 8

Care and maintenance ………………………………………………… 10

Important safety information …………………………………………. 12

DMP330……………………………………………………………………… 21

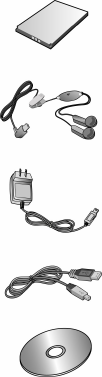

Product Package ………………………………………………………… 21

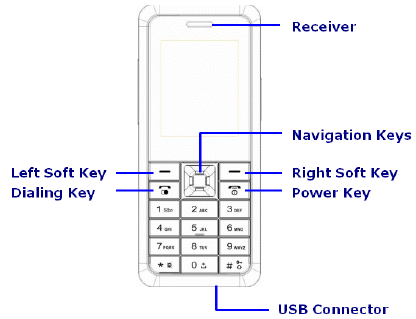

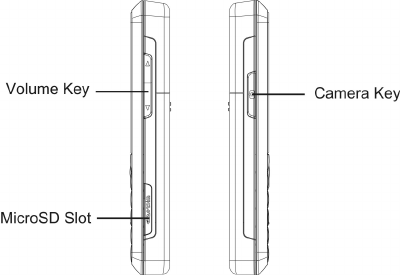

Phone Layout …………………………………………………………….. 22

Keypad Description …………………………………………………….. 24

Icon Description on Standby Mode Screen ……….…………….. 27

GETTING STARTED ……………………………………………………. 31

Installing the SIM card and the battery……..…………………….. 31

Charging the battery……………………………………………………. 32

Switching the phone on and off……………………………………… 35

Function without plug-in SIM card………………………………….. 35

CALL FUNCTION………………………………………………………… 36

2

Making a call from the Contact ……………………………………… 36

Making an international call ………………………………………….. 37

Answering an incoming call ………………………………………….. 37

Rejecting the incoming call …………………………………………… 37

Call waiting………………………………………………………………… 37

Making a conference call ……………………………………………… 38

Tips for call options……………………………………………………… 39

Text editing using input method …………………………………….. 39

MESSAGES ………………………………………………………. 43

SMS …………………………………………………………………………. 43

Multimedia Message Service (MMS) ……..…….………………… 50

Chat …………………………………………………………………………. 61

E-mail……………………………………………………………………….. 63

Voice Mail Server………………………………………………………… 63

Broadcast Message…………………………………………………….. 64

CALL HISTORY …………………………………………………. 65

Missed calls……………………………………………………………….. 66

Dialed Calls ……………………………………………………………….. 66

3

Received Calls …………………………………………………………… 67

Delete Call Log…………………………………………………………… 68

Call Time …………………………………………………………………… 68

Call Cost……………………………………………………………………. 69

SMS Counter……………………………………………………………… 69

GRPS Counter …………………………………………………………… 70

CONTACT ………………………………………………………… 70

Quick Search……………………………………………………………… 71

Search Entry………………………………………………………………. 71

Add New Entry …………………………………………………………… 73

Copy All …………………………………………………………………….. 73

Delete……………………………………………………………………….. 74

Caller Group………………………………………………………………. 74

Search By Caller Group……………………………………………….. 75

Extra Number …………………………………………………………….. 76

Settings …………………………………………………………………….. 76

VOIP ………………………………………………………………… 77

Preferred Mode ………………………………………………………….. 78

4

Enable WLAN and search for network ……………………………. 78

SIP Setting ………………………………………………………………… 80

Make a New VoIP Call …………………………………………………. 82

SERVICES ………………………………………………………… 84

WAP …………………………………………………………………………. 84

Data Account……………………………………………………………… 90

FILE MANAGER ………………………………………………… 92

CAMERA ………………………………………………………….. 93

Camera …………………………………………………………………….. 93

Image Viewer …………………………………………………………….. 97

Video Recorder…………………………………………………………… 98

Video Player ………………………………………………………………. 103

Photo Editor……………………………………………………………….. 104

5

ENTERTAINMENT ……………………………………………… 106

Java …………………………………………………………………………. 106

Java Setting……………………………………………………………….. 106

Games………………………………………………………………………. 106

Themes …………………………………………………………………….. 107

Sound Recorder …………………………………………………………. 107

Melody Compose………………………………………………………… 109

AUDIO PLAYER ………………………………………………… 113

Play the music……………………………………………………………. 114

ORGANIZER …………………………………………………….. 117

Calendar……………………………………………………………………. 117

To do list……………………………………………………………………. 118

Alarm………………………………………………………………………… 119

E-book Reader …………………………………………………………… 120

6

APPLICATION …………………………………………………… 123

Bluetooth …………………………………………………………………… 123

World Clock ……………………………………………………………….. 126

Calculator ………………………………………………………………….. 127

Unit converter …………………………………………………………….. 128

Currency converter……………………………………………………… 128

Health……………………………………………………………………….. 129

Stopwatch………………………………………………………………….. 130

SETTINGS ……………………………………………………………. 132

User profiles ………………………………………………………………. 132

Display Characteristic………………………………………………….. 135

Phone setup ………………………………………………………………. 136

Call setup ………………………………………………………………….. 141

Network Setup……………………………………………………………. 145

Security Setup ……………………………………………………………. 150

Restore Factory Settings ……………………………………………… 152

Sound Effect………………………………………………………………. 152

Shortcuts …………………………………………………………………… 153

EMERGENCY CALLS ………………………………………………….. 153

7

General information

Battery care

DMP330 is powered by a rechargeable battery.



The battery can be charged and discharged hundreds

of times but it will eventually wear out. When the

operating time (talking time and standby time) is

noticeably shorter than normal, user should buy a new

battery at this time.



Unplug the charger when not in use. Don’t leave the

battery connected to a charger for longer than a week,

since overcharging may shorten its lifetime.



Overcharging may shorten its lifetime, and if left unused

a fully charged battery may discharge itself over time.



If the phone is not in use and charged for a long time,

over-discharge may happen.



Over-discharge may cause DMP330 to be charged

abnormally and the indication of battery in charge

cannot be seen immediately once the battery is charged.

The indication of battery in charge may only be seen

after 20 minutes.

8



Temperature extremes can affect the ability of your

battery to charge.



Do not use any charger or battery that is damaged in

any way.



Use the battery only for its intended purpose.



Extreme temperatures will affect the charging capacity

of your battery.



Do not leave the battery in hot or cold places, such as in

a car in summer or winter condition.



Do not short-circuit the battery. Short-circuiting the

terminals may damage the battery or the connecting

object.



Dispose of batteries according to local regulations.

Always recycle. Do not dispose of batteries in a fire.

Access codes

PIN code

The PIN (Personal Identification Number) code protects your

SIM card against unauthorized. Your SIM card usually supplies

the PIN code.

9

Note: User may need to obtain the password from your service

provider.

Note: If user key in an incorrect PIN code three times in succession,

user may need to key in PUK code.

PIN2 code

The PIN2 code may be supplied with the SIM card. Some

functions will require PIN2 support.

Note: Your may need to obtain the password from your service

provider.

PUK code

The PUK (Personal Unblocking Key) code is required to change

a blocked PIN code. The PUK code is required to change a

blocked PIN2 code.

Note: User may need to obtain the password from your service

provider.

Note: If user keys in an incorrect PIN2 code three times in

succession, user may need to key in PUK2 code.

Note: If user key in an incorrect PUK code ten times in succession,

10

the SIM card cannot be used anymore. Contact your service provider for

a new card.

Phone code

Phone code protects the phone against unauthorized use. It is

not activated in default. User can activate this function and

change the default phone code (1122) to any four to eight-digit

personal codes.

Care and maintenance

Read this information before using your mobile phone.

Your mobile phone is a highly sophisticated electronic device.

When use DMP330, battery, charger or any accessory, please

read this first.

Product care



Keep your mobile phone and all its parts out of young

children’s reach.



Keep your mobile phone dry.



Avoid exposing your mobile phone to extreme hot or

cold temperatures.

11



Avoid placing your mobile phone close to lit cigarettes,

naked flames or any heat source.



Do not attempt to disassemble it. Non-expert handling

of the device may damage it.



Do not drop, knock or shake it. Rough handling can

break internal circuit boards.



Do not paint your mobile phone as the paint could

obstruct the earphone, microphone or any moveable

parts and prevent normal use.



Treat your mobile phone with care, keep it in a clean

and dust free place.



Do not touch the antenna unnecessarily when the

phone is switched on. Contact with the antenna affects

call quality and may cause the phone to operate at a

higher power level that needed and shorten talk and

standby times.



Hold the phone as user speaks to any other telephone.

While speaking directly into the microphone, angle the

antenna in a direction up and over your shoulder. If the

antenna is extendable/retractable, it should be

extended during the call.

12

Important safety information

FCC Regulations

This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause

undesired operation.

This device has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential

installation. This equipment generates, uses and can radiated

radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications. However, there is no

guarantee that interference will not occur in a particular

installation If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

13



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and

receiver.



Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.



Consult the dealer or an experienced radio/TV

technician for help.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user‘s authority to

operate the equipment.

RF Exposure Information (SAR)

This device meets the government’s requirements for exposure

to radio waves.

This device is designed and manufactured not

to exceed the emission limits for exposure to radio frequency

(RF) energy set by the Federal Communications Commission of

the U.S. Government.

The exposure standard for wireless devices employs a unit of

measurement known as the Specific Absorption Rate, or SAR.

The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are

conducted using standard operating positions accepted by the

14

FCC with the device transmitting at its highest certified power

level in all tested frequency bands.

Although the SAR is

determined at the highest certified power level, the actual SAR

level of the device while operating can be well below the

maximum value. This is because the device is designed to

operate at multiple power levels so as to use only the poser

required to reach the network. In general, the closer you are to

a wireless base station antenna, the lower the power output.

The highest SAR value for the device as reported to the FCC

when tested for use at the ear is 0.564 W/kg for PCS Head SAR

and 0.2 W/kg for WLAN Head SAR and when worn on the body,

as described in this user guide, is 0.864 W/kg for PCS Body

SAR and 0.434 W/kg for WLAN Body SAR. (Body-worn

measurements differ among device models, depending upon

available enhancements and FCC requirements.)

While there may be differences between the SAR levels of

various devices and at various positions, they all meet the

government requirement.

The FCC has granted an Equipment Authorization for this device

with all reported SAR levels evaluated as in compliance with the

FCC RF exposure guidelines. SAR information on this device

is on file with the FCC and can be found under the Display Grant

15

section of http://www.fcc.gov/oet/fccid after searching on FCC ID:

D6XDMP330.

For body worn operation, this device has been tested and meets

the FCC RF exposure guidelines for use with an accessory that

contains no metal and the positions the handset a minimum of

1.5 cm from the body. Use of other enhancements may not

ensure compliance with FCC RF exposure guidelines. If you

do no t use a body-worn accessory and are not holding the

device at the ear, position the handset a minimum of 1.5 cm from

your body when the device is switched on.

Radio frequency energy

Your mobile phone is a radio transmitter and receiver. When the

phone is turned on, it receives and transmits radio frequency

(RF) energy. Depending on the type of mobile phone user

posses, it operates on different frequency ranges and employs

commonly used modulation techniques. The system that

handles your call when user is using phone controls the power

level at which DMP330 transmits.

16

Specific Absorption Rate (SAR) information.

DMP330 has been designed to comply with applicable safety

requirement for exposure to radio waves. This requirement is

based on scientific organizations through periodic and thorough

evaluation of scientific studies. These guidelines include safety

margins designed to assure this safety of all persons, regardless

of age and health.



The radio wave exposure guidelines employ a unit of

measurement known as the Specific Absorption Rate,

or SAR. Tests for SAR are conducted using

standardized method with the phone transmitting at this

highest certified power level in all used frequency

bands.



The SAR limit recommended by the international

Commission on Non-Ionizing Radiation Protection

(ICNIRP), which is 2W/kg averaged over then (10) gram

of tissue.



This highest SAR value for this model phone tested by

ADT for use at the ear is 0.49W/kg (10g).



SAR data information for residents in countries/regions

that have adopted the SAR limit recommended by the

17

Institute of Electrical and Electronics Engineers (IEEE),

which is 1.6 W/kg averaged over one (1) gram of tissue.

Electronic devices

Most modern electronic equipment is shielded from RF energy.

However, certain electronic equipment may not be shielded

against the RF signals from your wireless phone, therefore:



Do not use your mobile phone near medical equipment

without requesting permission.

Pacemaker

Mobile phones may affect the operation of some implanted

cardiac pacemakers and other medically implanted equipment.

Pacemaker manufacturers recommend that a minimum

separation of 20 cm (6 inches) be maintained between a

hand-held wireless phone and a pacemaker to avoid potential

interference with the pacemaker. These recommendations are

consistent with the independent research by and

recommendations of Wireless Technology Research.

Persons with pacemakers:



Should always keep the phone more than 20 cm (6

18

inches) from their pacemaker when the phone is

switched on;



Should not carry the phone in a breast pocket;



Should use the ear opposite the pacemaker to minimize

the potential for interference.



If user has any reason to suspect that interference is

taking place, switch off DMP330 immediately.

Hearing aids

Some hearing aids might be disturbed by mobile phones. In the

event of such disturbance, user may want to consult your

service provider, or call the customer services line to discuss

alternatives.

Aircraft



Turn off your mobile phone before boarding any aircraft.



Do not use it on the ground without crew permission

To prevent interference with communication systems, user must

not use your mobile phone while the plane is in the air.

19

Potentially explosive atmospheres

Switch off DMP330 when in any area with a potentially explosive

atmosphere and obey all signs and instructions. It is rare, but

DMP330 or its accessories could generate sparks. Sparks in

such areas could cause an explosion or fire resulting in bodily

injury or even death. Areas with a potentially explosive

atmosphere are often, but not always, clearly marked. They

include fuelling areas, such as petrol station, below deck on

boats, fuel or chemical transfer or storage facilities, and areas

where the air contains chemicals or particles, such as grain, dust,

or metal powders and any other area where user would normally

be advised to turn off your vehicle engine.

Driving

Check the laws and regulations on the use of mobile phones in

the areas where user drive. If user is going to use DMP330 while

driving, please:



Give full attention to driving



Use handsfree. Law in many countries requires vehicle

handsfree.



Pull off the road and park before making or answering a

20

call if driving conditions so require.

RF energy may affect some electronic systems in motor vehicles

such as car stereo, safety equipment etc. in addition; some

vehicle manufacturers do not allow use of mobile phones,

unless the installation is supported by a handsfree kit with an

external antenna in their vehicles. Check with your vehicle

manufacturer’s representative to be sure that your mobile phone

will not affect the electronic systems in your vehicle.

21

DMP330

Product Package

The package includes the following elements:

Battery

Headset

Charger

Download cable

CD

22

Phone Layout

23

24

Keypad Description

Key Icon

Key Name Main Function Description

Power Key

 Hold this key for at least two

seconds to power on/off the phone.

 Reject an incoming call.

 End a call in progress.

 Go back to the idle screen.

Dialing Key

 Dial a phone call.

 Confirm selection in menu

operation.

 Answer an incoming call.

 Check the call history of

dialed/missed/received calls in

standby mode.

Up/Down/Left/Right

Navigation Keys

 Browse functions/options in menu

operation.

 Move the cursor in text editing.

 Quick access to the following

functions in idle screen:

: Audio Player

: Call Group of Friends

: Messages

: Tone Setup

Center Navigation Key

 Confirm selection in menu operation.



holding two seconds at least

Left Soft Key (LSK)

 Enter the main menu in standby

mode.

 While checking recently called

numbers, store the numbers in the

phone book.

 Confirm the setting.

25

Right Soft Key (RSK)

 Enter contact list in standby mode.

 Delete characters in text editing.

 (Press and hold 2 sec. or up) Delete

all characters in editing mode.

Number Keys

 Key in alphabets of “A ~ Z” and “a ~

z”

 Key in numbers of 1, 2, ~ 9, 0.

 Hold key “1”

enter voice mailbox.

 Hold one of keys “2” ~ “9” for dialing

a predefined speed-dialed number.

 Long press key “0”

generate a “Space” character

 Long press key “0” in phone number

dialing to generate an international

call prefix “+” , or “P”, and “W”

characters

Extra Function Key

 Key in “*” character.

 Key in symbol characters such as

“, : ; ?” in text editing.

 In idle screen, hold for at least 2

seconds, switch current user profile

and silent profile alternatively

Pause Key

 Key in “#” character

 In text editing, change types of input

methods.

 In idle screen, hold for 2 seconds at

least, activate key lock function.

26

Volume Key

 Adjust keypad tone volume in

standby mode.

 Adjust speech volume in talking

mode

 Adjust music volume in audio player

Camera Key

 Hold on at least 2 seconds to enter

camera function.

 Take the picture when in camera

function

 Pause/Resume recording when in

video recorder function

27

Icon Description on Standby Mode Screen

User may see several icons showed on the status bar on the

display, the following table describes the meanings of these

icons.

Icon

Description

Battery level

GSM signal strength

28

WLAN signal strength

WLAN signal in status bar

WLAN off

WLAN connecting

WLAN disconnected

VoIP registered

Alarm

/ Line 1/Line 2

/ / Call forwarding for L1/L2/L1 and L2

29

/

GPRS registered/GPRS connected

Headset plugged in

New short message arrival

/

MMS unread/busy

Mute

Sound recording

Alter type: ringing

Alter type: silent

Alter type: vibration

Alter type: vibration then ringing

Alter type: vibration and ringing

/ /

Voice mail L1/L2/L3

Roaming

Missed call

30

Keypad Locked

Bluetooth on

Bluetooth connected

Bluetooth disconnected

//

Email L1/L2/L3

WAP mail

Stop watch

/

Chatting room 1/2

31

Getting Started

Installing the SIM card and the battery

User needs to follow up the following steps to insert the SIM

card and charge the battery before using the phone.

1. Press the back cover release button and take the cover

away as shown in Figure 1

2. Lift the battery away as shown in Figure 2.

3. Insert and slide the SIM card and battery as shown in

Figure 3.

Note: Keep all miniature SIM cards out of the reach of children.

Note: Be careful to handle, insert or remove the SIM card since the

SIM card and its contact can easily be damaged by scratched or bending.

Note: Before installing/removing the SIM card, always make sure

32

that the phone is switched off.

Charging the battery

User must fully charge the battery before using DMP330 for the

first time.

1. Connect the lead from the travel adapter to the USB socket

on the bottom of DMP330.

2. Connect the charger to an AC wall outlet.

User can charge the battery through



Charger: charge battery from a stand AC power

outlet



USB cable: charge battery from devices with USB

host connector (e.g., desktop PC and laptop PC)

33

Note: When you first use the phone, the battery has to be fully

charged. It takes about 2.5 hours to finish charging an empty battery.

Charging through charger

1. Plug the charger connector into mini-USB socket at the

bottom of phone when phone is either switched on or off.

2. User can hear a “beep” sound and see a message saying

“Charger Connected”, and then charging starts. At this

moment, User can see the battery bar icon running on the

main display screen.

3. Once the charging is completed, a full battery bar icon

appears.

4. Remove the charger, user will hear a “beep” sound again

and see a message saying “Charger Removed.”

Charging through USB cable

1. Connect the USB cable to a desktop PC or a laptop PC

which is switched on. Make sure the PC is not in sleep

34

mode.

2. Plug the USB connector into mini-USB socket at the bottom

of phone when phone is either switched on or off.

3. User can hear a “beep” sound and see USB configuration

menu in the display screen. Press key, then

charging starts. At this moment, user can see the battery

bar icon changing on the main display screen.

4. Once the charging is completed, a full battery bar icon

appears.

5. Remove USB cable, you will hear a “beep” sound again

and see a message saying “Charger Removed.”

Note: When the battery level is low and indicated by “ ” on the

display, user will hear a “beep” sound. When the battery level becomes

too low and indicated by “ ” on the display, it shall be switched off

automatically in a short time.

Note: If the phone is not in use and charged for a long time,

over-discharge may happen. If user cannot see charging screen upon the

connection of the charger, wait for a period of time and then the charging

will be activated. In case that the charging screen cannot be shown

always, contact service center.

35

Switching the phone on and off

1. Press and hold key.

2. If the phone asks PIN code, key in the PIN code, and press

Left Soft Key (LSK) to confirm.

Note: If the phone shows “Insert SIM” when SIM card is properly

inserted, contact your network operator or service provider.

Note: Do not switch the phone on when wireless phone use is

prohibited or when it may cause interference or danger.

Function without plug-in SIM card

DMP330 has some functions user can use without plug-in SIM

card. Including:

 E-mail

 Call History

 Contact

 VoIP

 Services

 File Manager

36

 Camera

 Entertainment

 Audio Player

 Organizer

 Application

 Setting(except Call Setup and Shortcuts)

Call Function

This gives user information about the calling service that support

in DMP330.

Making a call from the Contact

1. In standby mode, dial number and press .

2. In standby mode, press Right Soft Key (RSK) to

enter Name, select one name from Search and follow by

pressing key to dial.

3. User could also press Menu and choose to enter Contact

submenu to make a call.

37

Making an international call

For international calls, long press key for the

international prefix (character “+”).

Key in the country code, area code and the phone number.

Press to call.

Answering an incoming call

Press to answer the call.

Rejecting the incoming call

Press to reject the call.

Call waiting

User can answer another incoming call while user has a call in

progress.

During a call, press LSK to enter option menu to hold a

call.

38

Making a conference call

User can make conference call while user has multi calls in

progress.

1. Make a call to the first participant.

2. Press LSK and choose New Call to call the second

participant as explained in Make a new call during a call.

3. Press LSK and select Conference. This joins the

calls to the conference.

4. Repeat step 2 and 3 to allow new participants to be

connected to the conference call.

5. Press Option and select End All to end the call or press

.

6. Any call (participant) can be disconnected by press Option

key and select End Single.

Note: Please user make sure if the operation supports this service or

need to subscribe this service before using this function.

39

Tips for call options

A call can be connected to any single caller by pressing Option.

When user presses Option during an active call, user would see

the following functions:

1. Hold: put a call on

2. End: end a call.

3. New call: make a new call during an active call.

4. Contact: shortcut to Contact menu.

5. SMS: shortcut to Messages menu.

6. Sound recorder: to record the conversation during an

active phone call.

7. Mute: set On/Off to mute the call during the conversation.

8. DTMF: set On/Off for DTMF (Dual Tone Multi-Frequency)

tone dialing system.

Text editing using input method

User can key in text by using the traditional method or predictive

smart input. DMP330 is designed to support six languages:

English, Spanish, French, German, Traditional Chinese and

Simplified Chinese languages

40

To select input method

1. When key in text, press Option and select Input Method.

2. User can also change input method by short press

key.

To insert a space

In T9abc, user could use key to insert spaces.

Traditional English input

DMP330 provides Multitap function. For example, press

key twice to display the letter “B”, and press three times to

display the letter “C”. The following table shows the mapping of

keypads of “0” ~ “9” and the associated characters.

41

English characters table

42

Text entry with “T9”

“T9” uses a built-in dictionary to recognize the most commonly

used word for every sequence of key presses.

The selected input method will be shown the icon in the

indication bar. User can choose to turn on or off your T9 input

method in option list.

Multitap ABC

Multitap abc

Numeric

Smart ABC

Smart abc

43

Messages

User can view, edit, and send the message via this menu.

SMS

DMP330 also allows user to send and receive text message

contain pictures or melodies.

To write a message

1. In Messages menu, choose SMS, press Ok

2. Choose Write Message, press Ok to write message.

3. User can also personalize your message with more

different special effects by selecting following functions in

option list which are:



Use Templates: User might insert default template

for quick writing.



Insert Object: User might insert picture, animation,

melody and sound in your text message.

44



Format Text: User might choose text size, style,

alignment or start new paragraph.



Insert PHB Number: You can add number from

phonebook



Insert PHB Name: You can add name from

phonebook



Insert Bookmark: You can add bookmark from

WAP



Input Method: User might choose input method

as user wishes.

Note: To quick access Messages function, user can press

left key of in standby mode.

Note: To key in the content, please refer to Subsection of

“Text editing using input method.”

To read message

When user has received a message, the indicator will

appear on the display. If your inbox is full, there will be a pop-up

window to remind user to delete some of your old message.

45

Otherwise, your message will be saved in the phone instead of

SIM card.

1. In Messages, choose Text Message (SMS), press OK and

then select Inbox.

2. Choose the message user would like to read by pressing

OK to view the content.

Note: The message user has received will be saved in SIM as

default setting.

When user read the message, DMP330 provides following

selections for your option.



Reply: Allow user to reply by sending a text

message.



Delete: Allow user to delete the message in

progress.



Edit: Allow user to edit the text message.



Forward: Allow user to forward a text message.



Copy To Phone/SIM: Allow user to copy the

selected text message to DMP330/SIM.

46



Move To Phone/SIM: Allow user to move the

selected text message to DMP330/SIM.



Chat: Allow user to chat with the one sending

message to DMP330.



Delete All: Allow user to delete all message at

once.



Copy All: Allow user to copy all message to

DMP330 at once.



Move All: Allow user to move all message to

DMP330 at once.



Use Number: Allow user to save the number in

your Contact.



Use URL: Allow user to use the URL in DMP330.

To send a message

1. In Messages, choose Text Message (SMS) and press

OK.

2. Choose Write Message; press OK to start writing

message.

47

3. After finishing the writing, select Done following by

pressing Option.

Note: To use picture message function, your network operator or

service provider support is necessary. Only phones that contain this

function can receive and display picture message.

DMP330 provides the following options:



Send Only: Allow user to send a text message

immediately.



Save And Send: Allow user to save and send a

text message.



Save: Allow user to save the message and send it

later.



Send to Many: Allow user to send many contact

at once. Successful sent message will not be

stored in Outbox.



Send By Group: Allow user to send a group user

has grouped in the phone.

Outbox Message

After sending out the message, the message is saved in the

48

outbox folder if user choose “Save And Send”. User is allowed

to read message user has chosen to save with the following

option:

1. In Messages, choose SMS,

2. Press Ok and then select Outbox.

You are allowed to read messages you have chosen to save

with the following options:



Send: Allow user to send the message.



Edit: Allow user to edit the saved message.



Delete: Allow user to delete the message in

progress.



Copy To Phone/SIM: Allow user to copy the

selected text message to DMP330/SIM.



Move To Phone/SIM: Allow user to move the

selected text message to DMP330/SIM.



Delete All: Allow user to delete all message in

your outbox at once.



Copy All: Allow user to copy all message to

DMP330 at once.



Move All: Allow user to move all message to

DMP330 at once.

49



Use Number: Allow user to save the number in

your Contact.



Use URL: Allow user to save the URL in DMP330.

Template

There are several default templates in DMP330 for quick

message writing. User can also edit these templates to preferred

words or to erase template.

Message Settings

DMP330 allows user to set up default settings on the SMS

feature.

1. In Messages, choose SMS, press Ok

2. Choose Message Settings, press Ok.

DMP330 provides the following selections for your option:



Profile Setting: If more than one message profile

is allowed by your SIM, user may edit the profile

50

separately.



Common Setting: User can enable or disable

delivery report and reply path.



Memory Status: Allow user to check the memory

status of the SMS in term of in SIM or in Phone



Preferred Storage: Allow user to change your

preferred storage either SIM or phone.



Prefer Bearer: Allow user to choose your

preferred bearer-GSM or GPRS.

Multimedia Message Service (MMS)

The feature allows user to send the message that contains text,

sound and a picture. Depending on the network, user may

receive a text message that includes an Internet address where

user can view the multimedia message.

DMP330 supports the following formats in MMS function.

1. Picture: JPG, GIF and BMP.

2. Sound: Scalable Polyphonic MIDI (SP-MIDI) and

i-Meldoy.

Note: User is not able to receive multimedia message during a call, a

51

game, or any active WAP connection over GPRS data.

To write a MMS

For availability to the multimedia messages service, please

contact your network operator or service provider.

1. In Messages, choose MMS and then press OK

2. Choose Write Message followed by pressing OK.

3. Add number or e-mail to To, Cc, and Bcc user wishes to

send to. Then edit the subject and content by press Edit.

4. In content, user is able to add text, image, audio and

attachment in to the slide.

Note: To key in the content, user can refer to “Input method “.

Note: To use picture message function, your network operator or

service provider support is necessary.

DMP330 provides the following selections for your option when

editing the slides:



Done: Allow user to exit the editing page and go

back to Edit content page.



Input Method: Allow to user change the input

method.

52



Add Image: Allow user to add a picture in your

message.



Add Audio: Allow user to add an audio file in your

message.



Add Video: Allow user to add video file in your

message.



Add Attachment: Allow user to attach a file in

your message.



Add Slider Before: Allow user to add text before

slider.



Add Slider After: Allow user to add text after

slider.



Add Bookmark Text: Allow user to add bookmark

in your message.



Preview: Allow user to preview the slide(s) user

just wrote.



Slide Timing: Allow user to edit the sliding time.

To send a MMS

1. In Messages, choose MMS and then press OK.

2. Choose Write Message followed by pressing OK.

3. After writing the message following by the below steps,

53

select Done to either Send Only, Save and Send, Save

To Drafts, Send Option, or Exit the message.

4. User can also choose the Send Option to edit the MMS

otherwise the message will be sent as default setting.

Note: To key in the content, user can refer to “Input method “.

Note: To use picture message function, your network operator or

service provider support is necessary.

DMP330 provides the following selections for your option:



Send Only: Allow user to send a text message

immediately.



Save And Send: Allow user to save a message

and send immediately.



Save To Drafts: Allow user to save a message

and send it later.



Send Option: Allow user to personalize the

sending option including Validity period, Delivery

report, Read report, and Priority.



Exit: Allow user to choose to save or not save the

message user has written.

54

Keypad information

Key Character

Shift the cursor in text edit mode.

Insert symbol.

Change input method.

Inbox

DMP330 saves the multimedia message that has been received

in the Inbox folder of the Multimedia message menu.

55

To read received multimedia message

1. In Messages, choose MMS and then press Ok

2. Select Inbox followed by pressing Ok.

3. Choose a message, press Option to view the message.

DMP330 provides the following selections for your option:



View: Allow user view a multimedia message

immediately.



Reply: Allow user to reply the sender.



Reply BY SMS: Allow user to reply by SMS



Reply All: Allow user to reply the group.



Forward: Allow user to forward the message.



Delete: Allow user to delete the selected

message.



Delete All: Allow user to delete the all message.



Properties: Allow user to view the mailing list.



Use Details: Allow user to either dial or save the

phone number

56

Outbox

MMS that have not been sent will save in Outbox folder of the

Multimedia message menu. The multimedia message that have

been sent are saved in the Out box folder of the Multimedia

message menu.

To read outbox multimedia message

1. In Messages, choose MMS, press Ok, choose Outbox,

press Ok

2. Choose a message, press Select to view.

DMP330 provides the following selections for your option:



View: Allow user to view a multimedia message

immediately.



Forward: Allow user to send the message to

others.



Edit: Allow user to edit.



Delete: Allow user to delete the selected

message.



Delete All: Allow user to delete the all message.



Properties: Allow user to view the mailing list



Use Details: Allow user to either dial or save the

57

phone number.

Draft

DMP330 saves the multimedia message that has not been sent

in the Draft folder of the Multimedia message menu.

To read unsent multimedia message

1. In Messages, choose MMS and press OK.

2. Select Drafts followed by pressing OK.

3. Choose a message, press Option to view the message.

DMP330 provides the following selections for your option:



View: Allow user view a multimedia message

immediately.



Send: Allow user to send the message



Edit: Allow user to edit the message.



Delete: Allow user to delete the selected

message.



Delete All: Allow user to delete the all message.



Properties: Allow user to view the mailing list



Use Detail: Allow user to either dial or save the

phone number.

58

Templates

This phone allows user to have a quick entry for your multimedia

message.

1. In Messages, choose MMS and press OK.

2. Select Templates, press OK, select a template, press

Option.

3. Choose Write Message to send the multimedia

message.

4. Select Done to either send or save the message.

User can view the content of template by View option to read the

slide and Properties to read the message content and size.

Message settings

Before user sends the MMS message, user needs to finish MMS

setting

1. In Messages, choose MMS and press OK.

2. Select Message Settings and press OK.

DMP330 provides the following selections for your option:



Compose: User can set your compose format

59

from the following option

 Creation Mode: Free/Restricted

 Image Resizing: 160x120 / 320×240 /

640×480 / Off

 Auto Signature: On/Off





Send:

 Validity period: This is the duration that your

message is stored at the Message Center.

The option of length of time includes: Max/

1 hour/ 12 hours/ 1 day/ 1 week

 Delivery report: User can turn On or Off this

function if user wants to receive delivery

report from service provider or not

 Read report: User can turn On or Off this

function if user wants to receive report from

service provider.

 Priority: User can choose message priority;

the option includes Normal, High, and Low.

 Slide timing: User can set slide timing by

own preference.

 Delivery Time: The option of length of time

60

includes Immediate/ In one hour/ 12 hours/

In 24 hours



Retrieve:

 Home network: The option of home network

includes Immediate/ Delayed/ Rejected

 Roaming: the option of roaming network

includes As Home/Delayed/Rejected

 Read report: The option of read report

includes On request/Send/Never send

 Delivery report: User can turn On or Off this

function to request the network to send

delivery reports of the past message.



Filter:

 Anonymous: The option of anonymous

includes Allow/Reject

 Advertisement: The option of advertisement

setting includes Allow /Reject



Server Profile:

 User may receive and send multimedia

message through certain network or service

provider. To activate or edit Profile detail

setting, press OK.

61



Memory Status

 User can check memory status.

Note: To finish the correct and valid MMS setting, user may contact

the network service operator.

Chat

User can chat with friends using this function. There are 2 chat

rooms.

Before chatting, user needs go to Chat Room Info to

1. Create a nickname by pressing Edit.

2. Then, input the mobile number or searching from contact.

To start chatting

1. After chat room setting, press Start New.

2. Create a nickname by pressing Edit.

3. Then, user is allowed to write a message to the one user

wishes to chat.

4. After finishing the writing, press Send to start chatting.

DMP330 provides the following selections when user starts to

62

chat



Send: Allow user to send the message user has

written.



Use Template: Allow user to insert the template in

your SMS template option.



Insert PHB Number: Allow user to insert phone

number from your contact.



Insert PHB Name: Allow user to insert name from

your contact.



Input Method: Allow user to change your input

method.

DMP330 provides the following selections during chatting,



Reply: Allow user to reply the message sent by

the one user chats with.



Use Number: Allow user to save the number of

chatter or number sent by chatter.



Clear Chat: Allow user to clear your conversation.



Temp Leave: Allow user to leave the chat room for

temporality.



Quit: Allow user to quit this chart room



Chat Room Info: Allow user to read the chat room

63

information user has set.

Note: If user happens to leave the chat room temporarily, user

can choose to Resume or End of chatting.

E-mail

DMP330 allows user to send and receive e-mail from GPRS or

WLAN. If user is the first time to use this function, please setup

E-mail profile first.

Email Profile

In Email Profile, choose one of them and press LSK to edit and

press OK. User has to setup Profile setting, Outgoing server,

Incoming Server and Signature.

Note: Detail settings; please check your service provider.

Voice Mail Server

DMP330 allows user to access your voice mailbox with a quick

way if your operator supports this function. Your voice mail

number will be provided by your service provider and showed in

64

the phone. In the Voice Mail submenu, user can choose line 1

or 2 and option list including:

1. Edit: Allow user to edit name & number of voice mail line

1.

2. Connect to voice: Allow user to connect your voice mail

box.

Note: To use this function, user may need to enter the voice server

number obtained from your service provider.

Broadcast Message

DMP330 allows user to receive commercial message. User can

either enable or disable the receiving mode and set some other

settings based on your personal preference.

DMP330 provides the following selections:



Receive Mode: User can choose to receive or not

receive the last broadcast message user has

received.



Read Message: User can read message by pressing

“OK” or exit by pressing “Back”



Languages: User can set up the languages of

broadcast message user wants to receive.

65



Channel Setting: User can add new channel where

user wants the message to be received to the list.

Then, select channel(s) from the select list. User is

allowed to add, edit and delete it.

Call History

DMP330 can save information for missed, received and dialed

66

calls, and the talking time as well as cost of your calls.

Note: Once the call list exceeds the memory limitation, the oldest

one is deleted. User can save at least 20 calls in Missed, Dialed &

Received calls per each list…

Note: for Missed, Dialed & Received calls, user can press talk key

to have a quick review. DMP330 provides several options if user

selects a certain phone number.

Missed calls

DMP330 allows user to view the last 20 missed calls.

To view missed calls

In Call History menu, choose Missed Calls; press OK to view

the records.

Dialed Calls

DMP330 allows user to view the last 20 outgoing calls.

To view dialed calls

In Call History menu, choose Dialed Calls and press OK to

67

view the records.

Received Calls

DMP330 allows user to view the last 20 received calls.

To view received calls

In Call History menu, choose Received Calls; press OK to

view the records.

When you choose the number, and press LSK, DMP330

provides the following selections for your option:



View: Allow user to see the detail information of

received calls, missed calls and dialed calls



Delete: Allow user to erase the number from the

list.



Save To Phonebook: Allow user to save the

number in SIM/phone.



Call Via VoIP: Allow user to call the number that

show in the screen through WLAN.



Call Via GSM: Allow user to call the number that

show in the screen through GSM.



Edit: Allow user to edit the number

68



Send SMS: Allow user to send a text message the

number showed in the screen.



Send MMS: Allow user to send a multimedia

message the number showed in the screen

Delete Call Log

DMP330 provides the following call deletion functions to delete

all call histories:



Missed Calls



Dialed Calls



Received Calls



Delete All

Call Time

DMP330 allows user to view the timers for calls made and

received.

1. In Call History menu, choose Call Time, press OK,

2. Choose an item, press OK to view the content.

DMP330 provides the following selections for your option:



Last Call Time: List out the last call time of your

69

conversation



Total Sent: Sum of total time user has called out.



Total Received: Sum of total call time user has

received.



Reset All Time: Reset the time counter to zero.

Call Cost

This function allows user to check the cost while making phone

call.

DMP330 provides the following selections for your option:



Last Call Cost: Last call user made



Total Cost: Sum of costs user made so far



Reset Cost: To reset the counter



Max Cost: To set the max cost allowed



Price Per Unit: To set the unit cost of the call

SMS Counter

This function allows user to check the numbers of message. It is

a counter. User may press reset to restart the counter.



Sent: The message number user sent

70



Received: The message number user received

GRPS Counter

This function allows user to check the data size of GPRS packet

user used.



Last Sent: The message size user last time sent



Last Received: The message size last time user

received



All Sent: The total message size user has sent



All Received: The total message size user has

received



Reset Counter: To reset the counter

Contact

Your contact is saved either in the SIM card’s memory or

Phone’s memory. User can also choose to save in both

71

memories.

Quick Search

Allow user to search by character.

Search Entry

Allow user to search names and numbers saved in the Contact.

To search a number and a name

1. In Search Entry submenu, key in full name or first

character of contact person’s name. The contact list will

automatically jump to the contact list with the character

user has entered or the matched contact will be shown.

2. Select the one user wishes to call by pressing to

start making a call.

User can also press Option to change input method or edit the

selected phone number.

DMP330 provides the following selections for Entry Option:



Call Via VoIP: Make a call through WLAN network.



Call Via GSM: Make a call through GSM network.

72



Send SMS: Allow user to send a short message.



Send MMS: Allow user to send a Multimedia

message.



View: Allow user to read the contact person’s

information.



Edit: Allow user to edit name & phone number of

the contact person.



Delete: Allow user to delete the selected contact

person’s information.



Copy: Allow user to copy the contact person’s

information to phone or SIM. (depend on where

user has saved the phone number)



Move: Allow user to move the select contacted

person’s information to phone or SIM.



Duplicate: Allow user to duplicate the selected

contact person’s information to the same memory

storage.



Send vCard: Allow user to send vCard to the

selected contact person.

73

Add New Entry

Allow user add new name and number in the SIM or phone.

To add a phone number and a name in Contact

1. In Contact menu, choose Add New Entry, press OK.

2. Choose the storage user wishes to save by selecting To

SIM or To Phone and pressing OK.

3. Key in the name, press OK, use navigation key to number

column, key in the number.

4. User may also edit the name, home number, company

name, email address, office number, fax number, birthday,

caller group for individual contact when choose to phone

and user can use left and right navi key to add or change

picture, video, sound and caller group.

Note: DMP330 allows user to save 1000 entries of phone numbers.

Copy All

User can copy and transfer DMP330 data from SIM to DMP330

(or from phone to SIM).

1. In Contact menu, select Copy.

2. Choose From SIM or From Phone and press OK to copy
